Commercial Vertical Platform Lift

bruno-commercial-uneclosed-vertical-platform-lift-1200x525
madeinusa

750 lb Lift Capacity

2-Year Limited Warranty

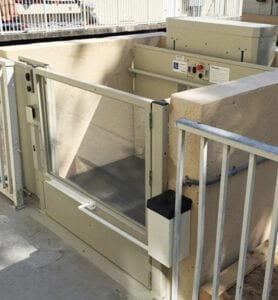

Commercial Vertical Platform Lift

Access to stages, porches, or short distances are common uses of Bruno’s affordable commercial vertical platform lift. Verify that local codes allow for an unenclosed wheelchair lift solution. Made in America quality with weather-protected controls for inside or outside applications.

PRODUCT HIGHLIGHTS

Effortless Operation

Self-lowering ramp folds down for smooth roll-on/off access. The ramp automatically folds up when VPL is in use to create a safety barrier. Pressure-control rocker switch provides easy up/down operation.

Safety Systems

The unit shuts down when an obstruction is touched under the platform. Emergency stop and audio/visual alarm. Top/bottom limit switches and upper/lower final limit safety switches.

Versatile Placement

Weather-protected controls and powder-coated paint protect VPL and enable installation indoors out outside, providing access up to 53 inches.

Code Compliant

Designed in accordance with ASME A18.1 section 2 and can be used in most applications to meet ANSI A117.1 National Accessibility Guidelines. Verify that local codes allow for an unenclosed wheelchair lift solution.

AVAILABLE OPTIONS

bruno-commercial-vertical-platform-lift-280x210-6

Landing Call/Send Station

Add a landing call/send station to operate the VPL from outside the lift.

bruno-commercial-vertical-platform-lift-280x210-2

Top Landing Gate

Includes call/send control with key & mechanical interlock or electrical strike interlock (ESI).

bruno-commercial-vertical-platform-lift-280x210-3

Platform Gate Operator

Improve ease of operation with an optional platform gate operator.

bruno-commercial-vertical-platform-lift-280x210-4

Platform Gate

Increase safety with optional platform gate. Recommended for all unenclosed applications.

bruno-commercial-vertical-platform-lift-280x210-5a

Power Assisted Operator

Easily access Bruno VPL with power-assisted door/gate operator.

TECHNICAL SPECIFICATIONS & DRAWINGS

Specs

  • VPL-3300 Tech Spec  -  (PDF)
  • VPL-3300 3-Part Spec  -  (PDF)  |  (DOC)
  • VPL-3300 10-Part Spec  -  (PDF)

Application Drawings

Application Drawings

  • ILS-00804: Top Landing Gate Framing
    (PDF)  |  (ZIP)
  • ILS-00938: Top Landing Gate Detail
    (PDF)  |  (ZIP)
  • ILS-01102: Straight-Thru Platform w/ Gate [No Pit]
    (PDF)  |  (ZIP)
  • ILS-01103: Straight-Thru Platform w/ Gate [Pit]
    (PDF)  |  (ZIP)
  • ILS-01104: 90-Degree/Adjacent Exit Platorm w/ Gate [No Pit]
    (PDF)  |  (ZIP)
  • ILS-01105: 90-Degree/Adjacent Exit Platorm w/ Gate [Pit]
    (PDF)  |  (ZIP)
